How to Connect Lenovo ThinkPad Universal USB-C Dock

ThinkPad Universal USB-C Dock– How to Connect & Troubleshooting Guide

Important Before You Start

⚠️ The dock has two USB-C ports:

  • Front USB-C port → For accessories/charging only

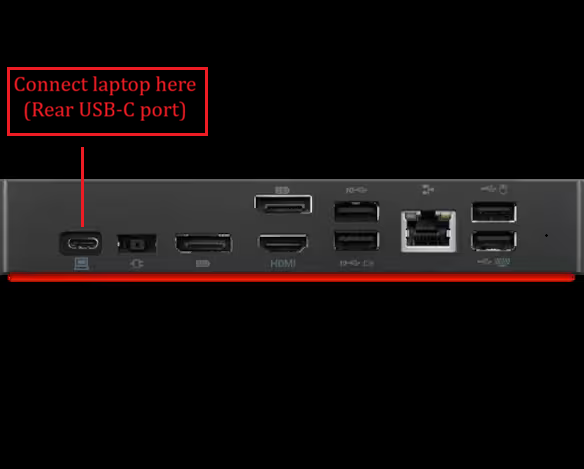

  • Rear USB-C port → ✅ This must be connected to your laptop

⚠️ Use only the original USB-C cable supplied with the docking station.
Other USB-C cables may charge the device but may not support docking/display functions.


How to Connect the Dock

Step 1 – Connect Power

Plug the dock’s power adapter into:

  • Power outlet
  • Dock power input

✅ Confirm the dock powers on.

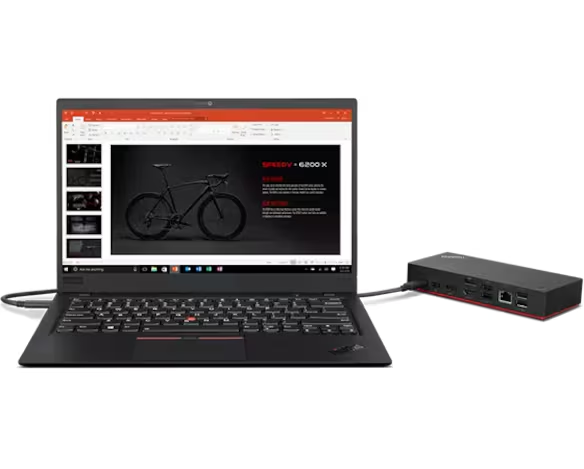

Step 2 – Connect Dock to Laptop

Using the Lenovo USB-C cable that came with the dock:

  • Plug one end into the rear USB-C port on the dock
  • Plug the other end into your laptop USB-C port

✅ The laptop should begin charging and recognise the dock.


Step 3 – Connect Accessories

Connect:

  • Monitor(s)
  • Keyboard
  • Mouse
  • Ethernet cable
  • USB devices

to the docking station.

Step 4 – Check Laptop Display

After connecting:

  • External monitor(s) should turn on
  • Keyboard/mouse should respond
  • Laptop charging icon should appear

Common Issues

Issue: Dock not detected

Check:
☑ Rear USB-C port is used
☑ Original Lenovo cable is used
☑ Power adapter connected
☑ Restart the dock by unplugging power for 10–15 seconds, then reconnecting

Issue: Monitor not displaying

Check:
☑ Monitor powered on
☑ HDMI/DisplayPort cable secure
☑ Reconnect dock cable
